Model: IA–BFM–004
High-Speed, Precision Bagging for Industrial-Scale Operations

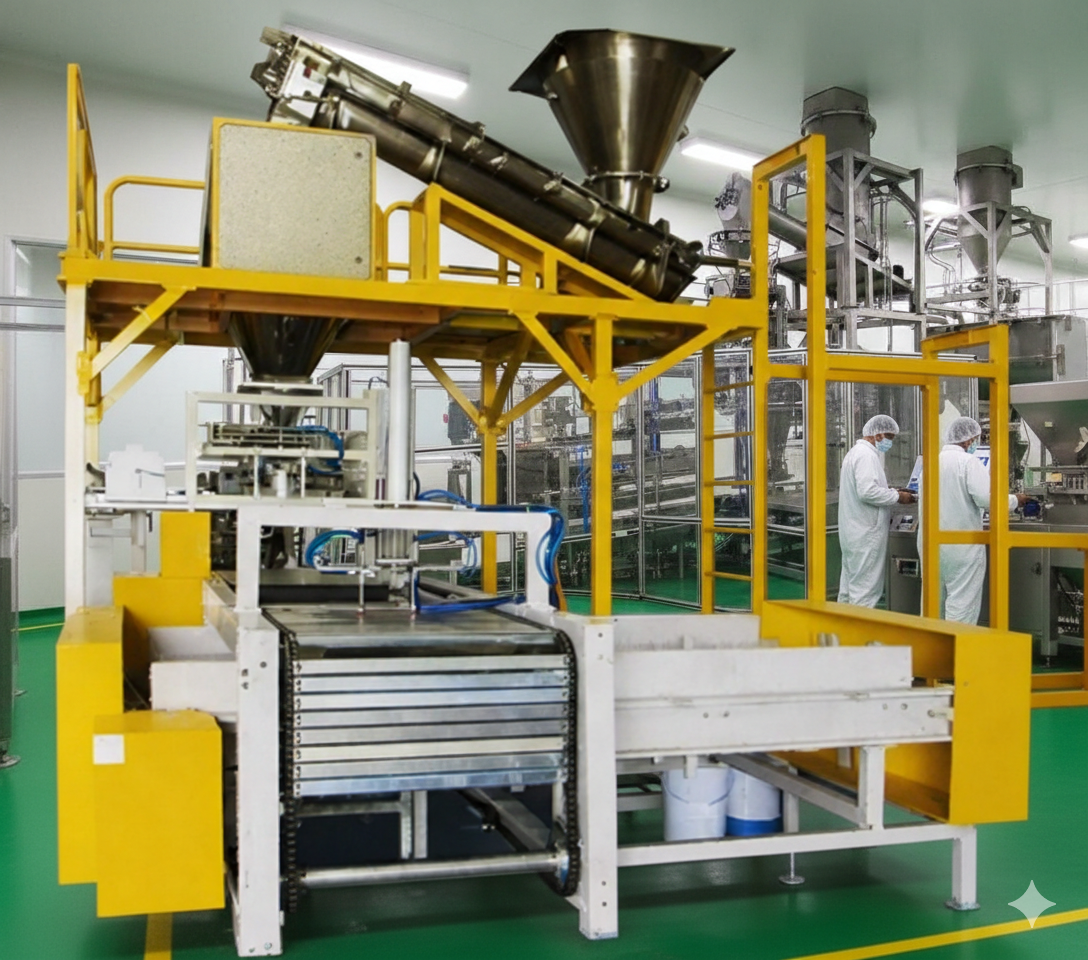

The IA–BFM–004 is our flagship fully-automatic bagging solution, engineered for high-volume production environments where speed, accuracy, and reliability are non-negotiable. This system seamlessly integrates weighing, filling, and optional downstream processes—such as checkweighing, metal detection, and palletizing—into one synchronized, turnkey line. Ideal for chemicals, fertilizers, food products, and bulk materials, it represents the pinnacle of automated packaging technology.
| Feature | Specification |
|---|---|
| Model | IA–BFM–004 |
| Capacity Range | 10 kg – 50 kg |
| Weighing System | Gain-in-Weight / Loss-in-Weight (product dependent) |
| Accuracy | Product-dependent (±10g to ±50g typical) |
| Speed | Up to 700 bags per hour (product-dependent) |
| Control System | PLC with Touchscreen HMI (7”/10”) |
| Bag Type | Valve bags, Open Mouth, Woven PP/PE |
| Air Supply | 6–7 bar, Clean & Dry |
| Power | 415V, 3 Phase, 50 Hz |
From automatic bag pick-and-place to filling, settling, and sealing—no manual intervention required.
High-resolution load cells with digital filtering ensure repeatable accuracy, even with challenging products
PLC-based system manages the entire sequence, with recipe storage for quick product changeovers.
Stainless steel contact parts, dust-tight enclosures, and optional nitrogen flushing for sensitive products.
Optional integrated checkweigher and metal detector provide real-time quality control and rejection.
Ethernet, USB, and SCADA-ready for data logging, OEE tracking, and remote diagnostics.
