Precision Continuous Weighing & Feeding for Bulk Solids

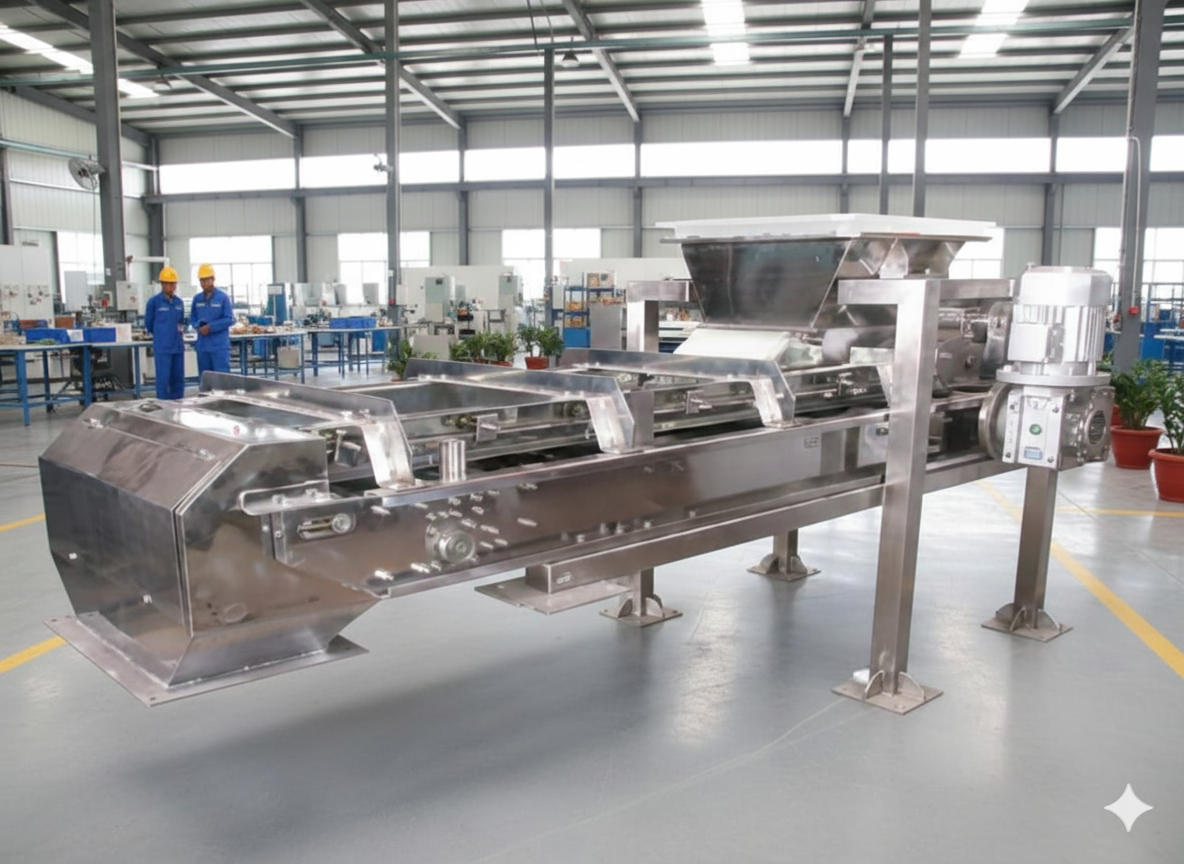

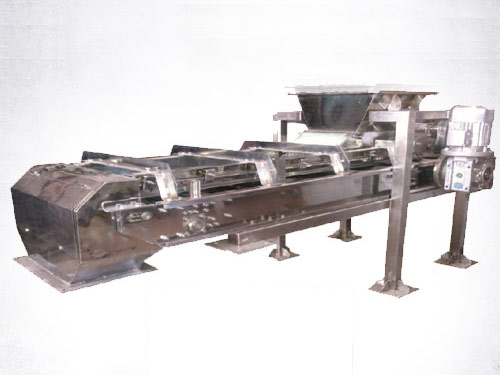

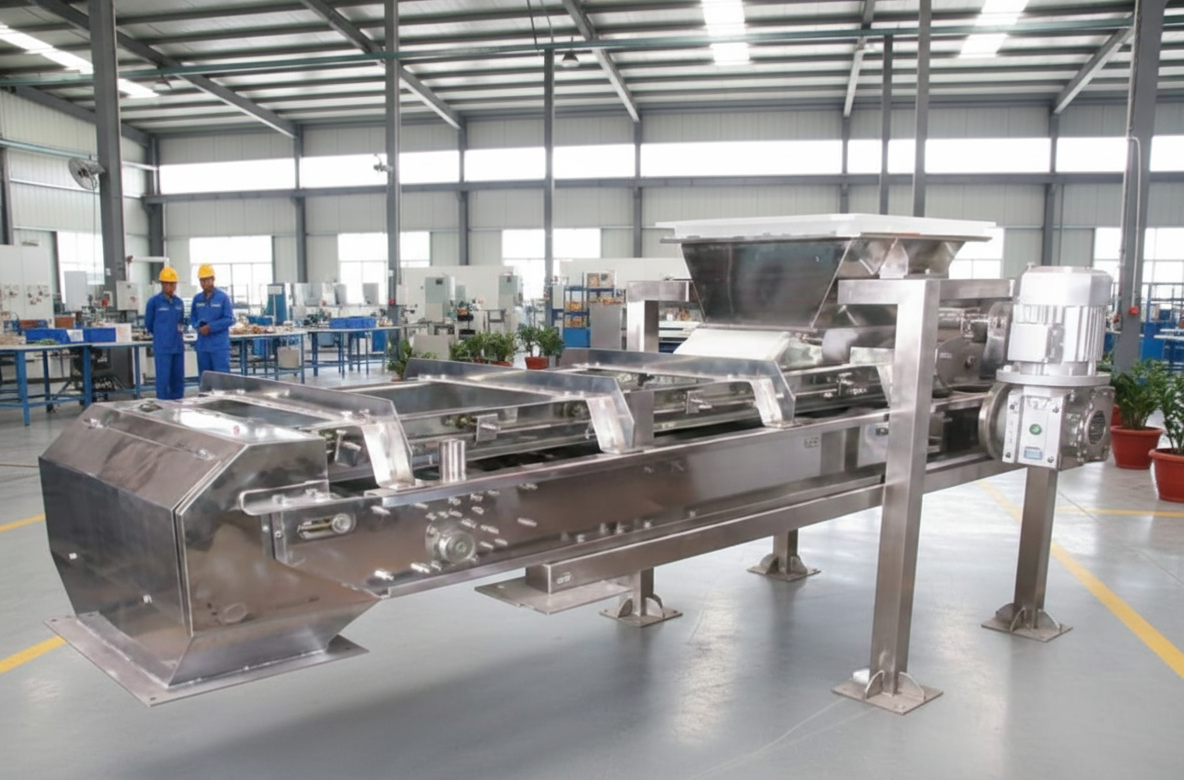

Indus Electronic Gravimetric Weigh Feeders are engineered for continuous, accurate proportioning and control of bulk solids in demanding industrial processes. By integrating state-of-the-art load cell technology, precision belt tracking, and advanced PID control algorithms, our weigh feeders ensure reliable mass flow measurement and controlled discharge for applications ranging from cement and steel to chemicals and fertilizers. As a leading manufacturer in India, we deliver robust, high-accuracy systems built for 24/7 operation.
| Feature | Specification |
|---|---|
| Capacity Range | 0.5 – 2000 tph (customizable) |
| Accuracy | ±0.5% FSR (Full Scale Range) |
| Belt Width | 300 mm – 2000 mm (as per capacity) |
| Load Cells | High-precision, hermetically sealed, stainless steel |
| Speed Sensor | Rotary encoder, non-contact type |
| Control System | PLC with PID controller & Touchscreen HMI |
| Drive System | Variable Frequency Drive (VFD) – closed-loop |
| Communication | 4-20mA, RS-485, Ethernet/IP, Profibus, Modbus |
Ensure perfect belt alignment and consistent weighing accuracy.
Prevent belt slippage and maintain speed integrity.
Maintains constant belt tension, eliminating manual adjustments.
Prevents material buildup, protects belt, and eliminates tare changes.
Belt can be changed from the side without external aids or crane support.
IP65/IP66 rated junction boxes and load cells for harsh environments.
Automatic calibration routines ensure long-term accuracy with minimal drift.
